Translucent Onyx Backlit Resin Panel

FOB Reference Price:Get Latest Price
$20.00 - $88.00 / Square Meter | 3 Square Meter/Square Meters for backlit resin panel (Min. Order)
Shipping:
Support Sea freight
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
NAITELI
Model Number:
NT-P060
Panel Material:
Nonmetal
Type:
PIR Sandwich Panels, onyx panel
Compressive Strength:
20.2MPA
Feature:
high rigidity
Application:
Backlit Resin Panel
Thickness:
6mm
Shape:
column,lamp shade,U shape
Size:
on request
Color:
white,beige,orange,yellow,blue,green
Advantage:
Lightweight
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month for backlit resin panel
Packaging & Delivery
Packaging Details
Standard foam with wood pallets.clear plastic film cover the artificial stone surface
Port
Zhongshan
Lead Time :
2~3 week after get your deposit
Product Description
Specification
Size
on request
Available Shape
square,column,S shape,U shape,M shape,lotus,flowers,or as request
Available Color
white,beige,orange,yellow,green,blue,pink,grey,black,or as request
Materials
translucent stone,eco resin panel,acrylic panel
Application
buffet lighting,lamp shade,show case,showbox,display stand,serving tray,amenity tray,coffee table,counter top,dining table

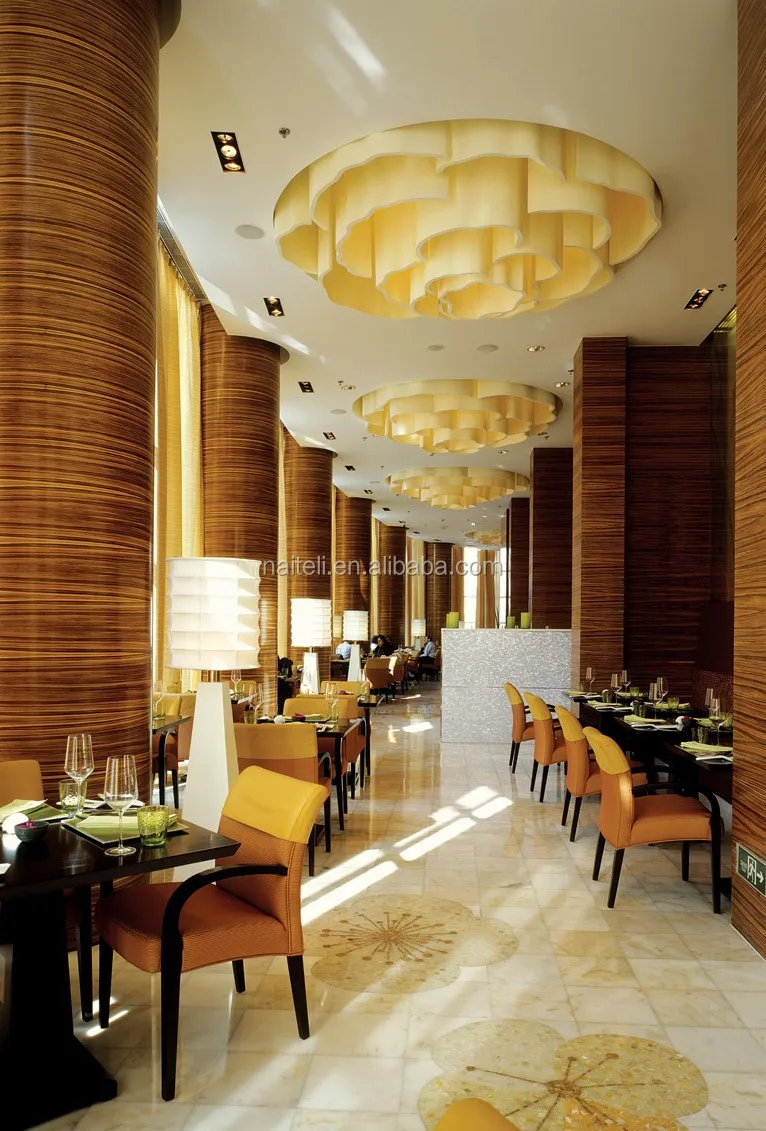

Flower Ceililng Lighting

translucent stone(alabaster,onyx or eco resin panel)

size:diameter 1m~1.5m,height 0.5m

yellow color,bending the flower shape with moulds,screw it with ceiling

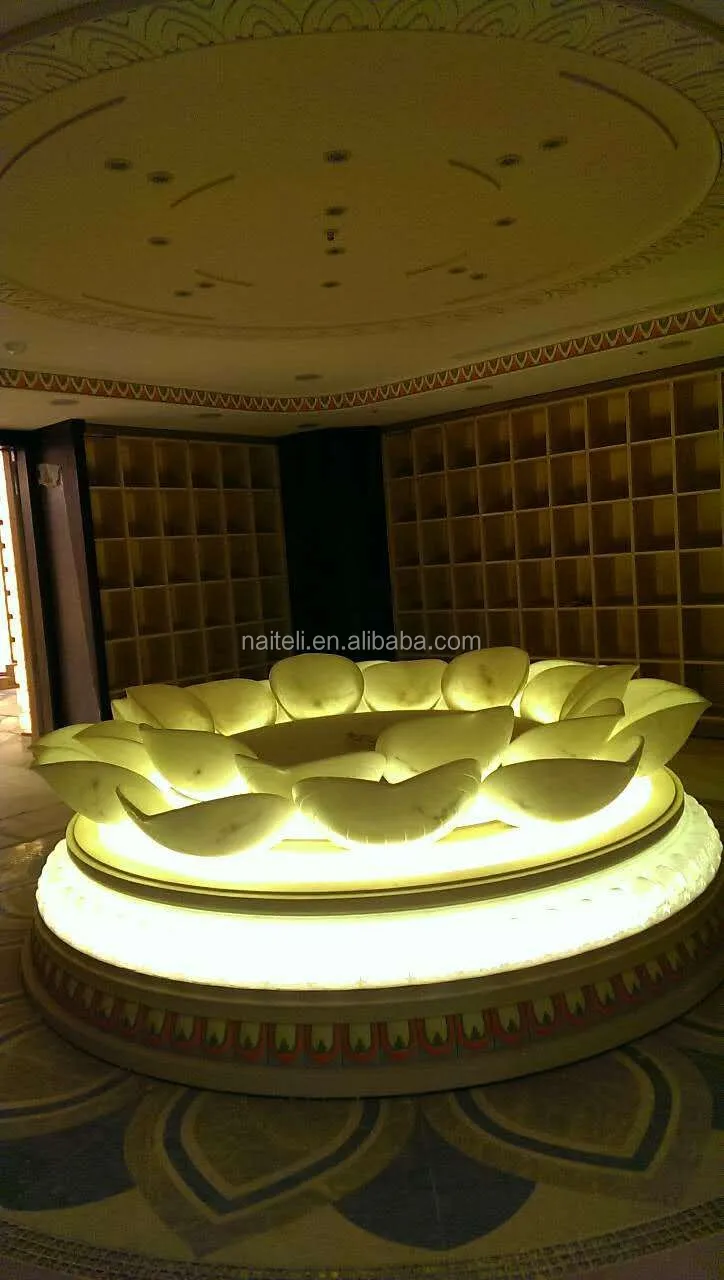

Lotus Lighting

lotus shape in translucent alabaster,white color brown veins.
big lotus shape size:480*400*280mm
small lotus shape size:380*340*300mm

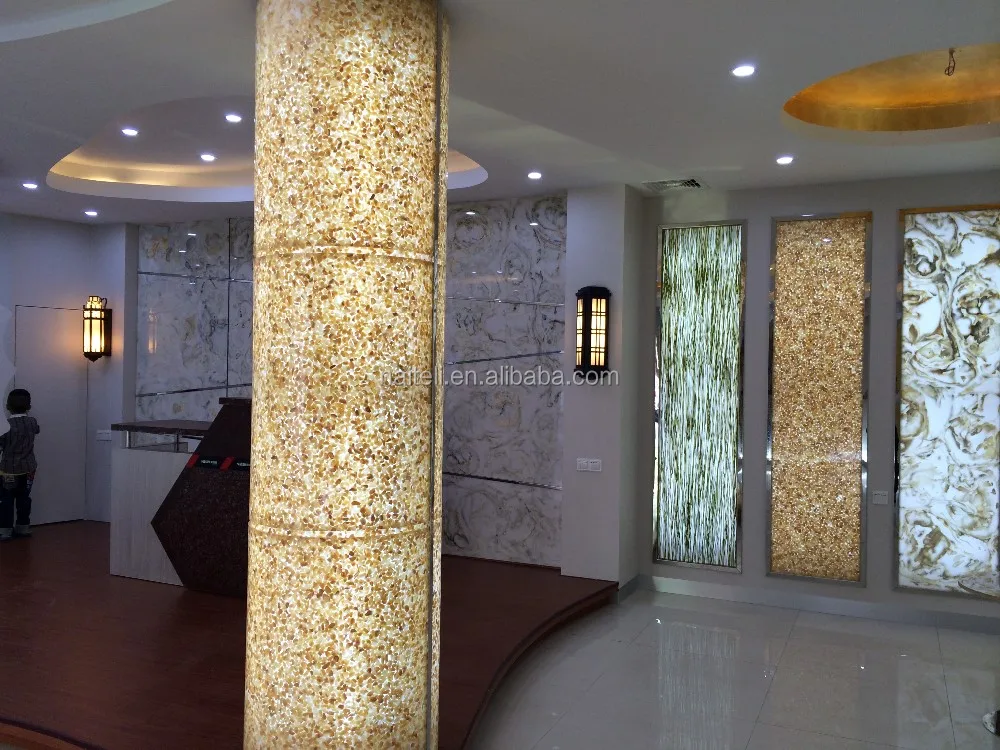

River Stone Column

yellow color translucent river stone,10mm thickness

diameter:500mm,height:2400mm,U cover to connect each part.

available color:white,black,blue,green,

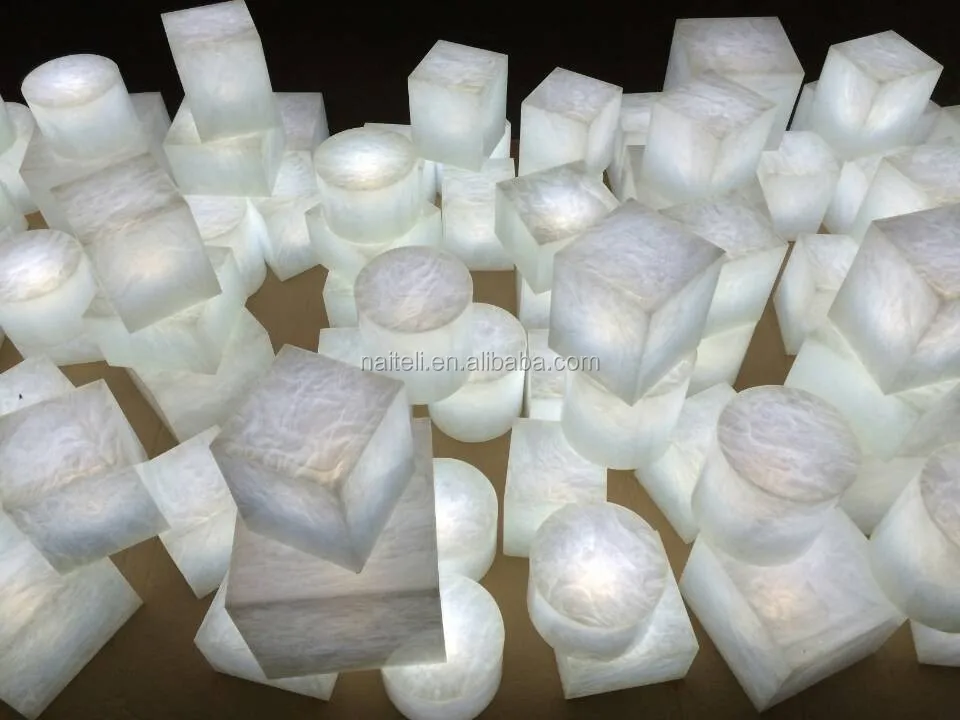

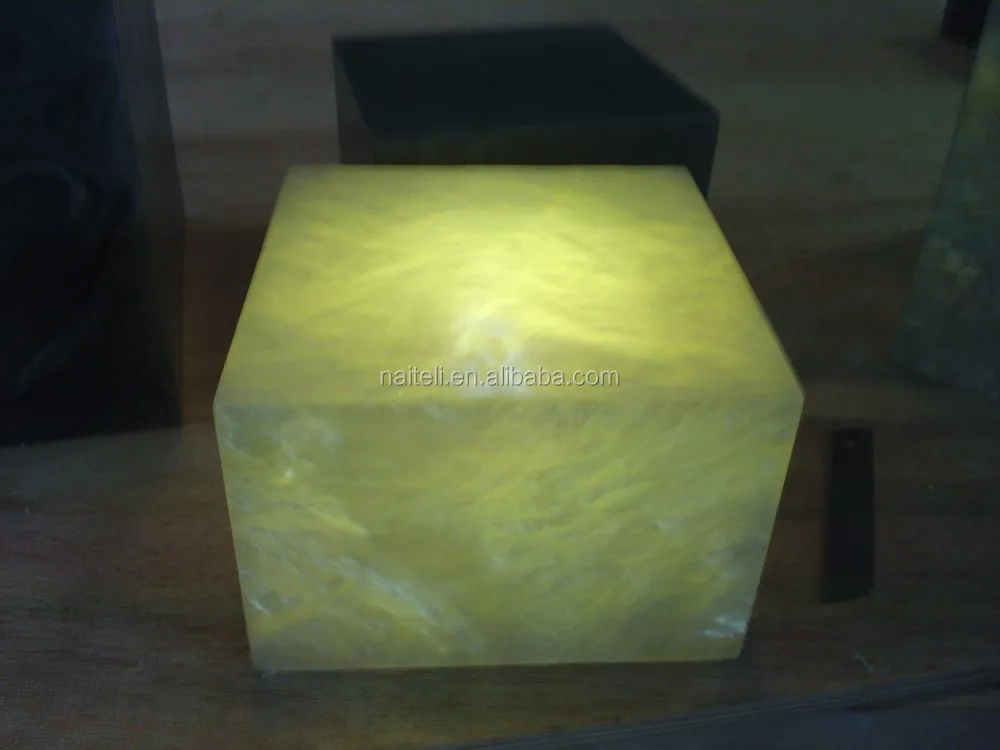

Buffet Lighting

size:150*150*100mm,200*200*200mm,175*175*175mm

color:mother of pearl,grey,golden,orange,blue

lighting:led lighting with rechargable battery

application:buffet light,food tray,night lighting,table light,diaply stand

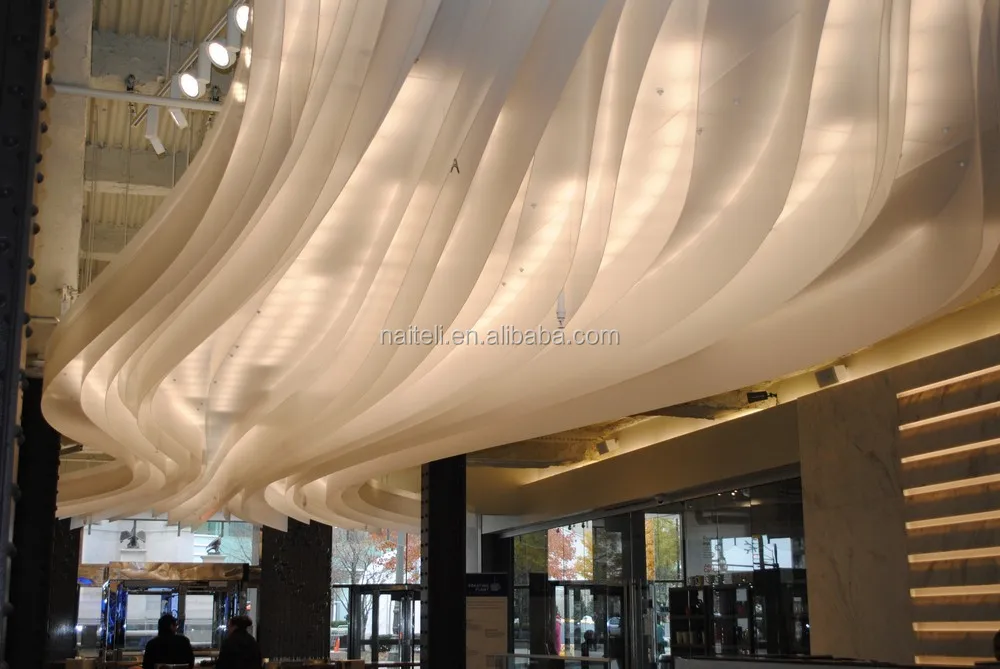

W shape Lighting

white color or milk white color eco resin panel

bending W shape randomly to get natural appearance and look

hanging stainless steel hand the resin panel with ceiling

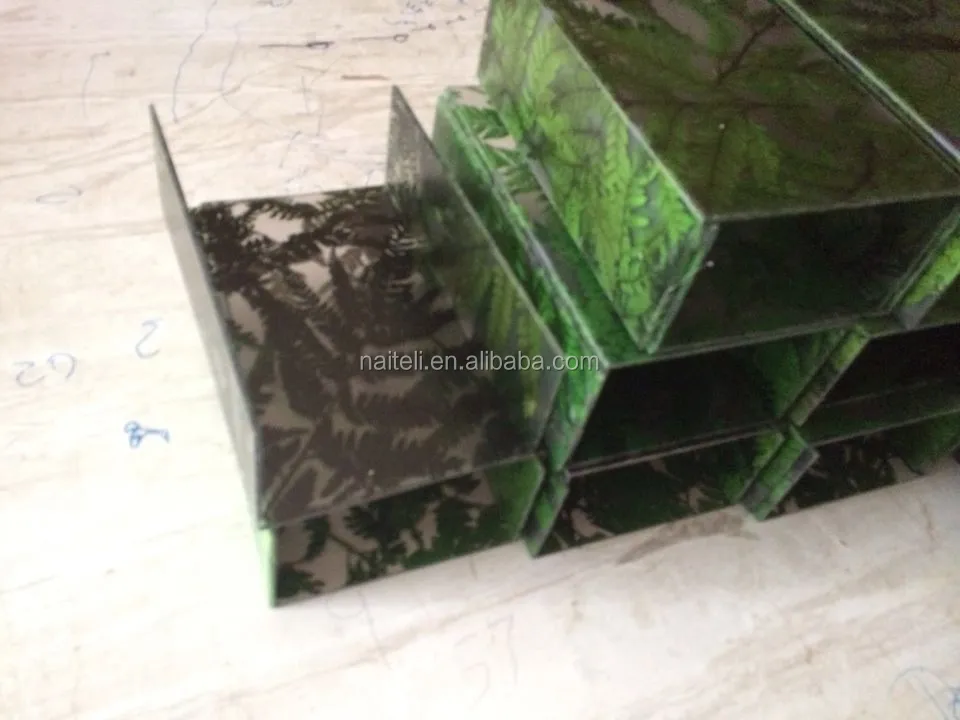

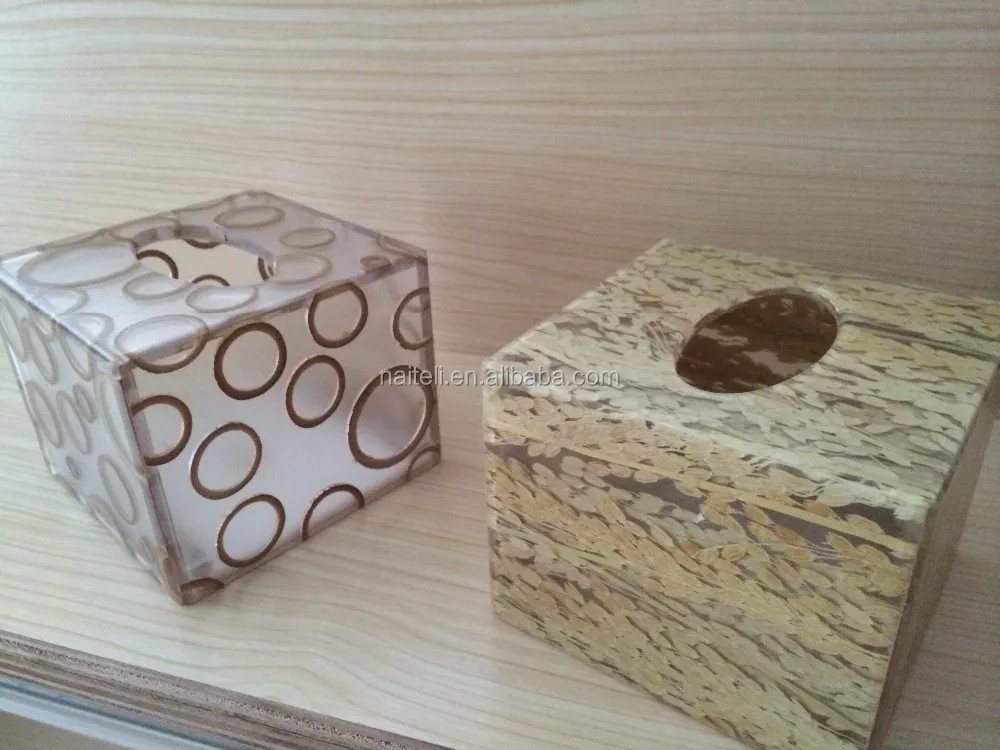

Tissue Paper Box

translucent eco resin panel laminate natural leave,flowers,textile with natural look

size:125*125*100mm with smooth hole,removable bottom

welocme your special design

Project

Ceiling

Name: translucent stone bending ceiling lighting
Model: NAITELI NT-5809 white brown vein
Des.: R1450 bending alabaster stone panel in full sheet size.put led lighting in the back side.each flooring install 6pcs bending alabaster panel

Lamp Shade

Name: yellow alabaster stone
Model: yellow color coffee vein
Des.:with four sided show cube/box in 400*400*900mm size,put led lighting in bottom with stainless steel frame to fix

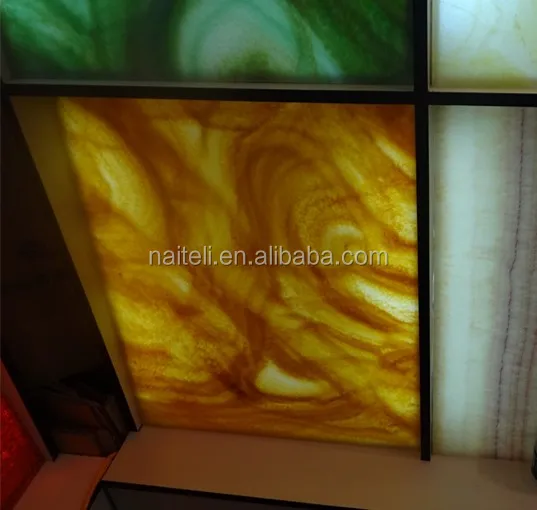

Feature Wall

Name: Backlit Onyx Wall Cladding
Model: yellow onyx NT-710
Des.: 8mm thickness,high polishing finish,cut 400*400mm size,use UV-connector to install the feature wall.

Backlit Wall Cladding

Name: Translucent Artificial Stone
Model: colorfull stone in show room
Des.: 300*500*50mm five sided show box with led lighting frame to get back lighting looking

Installation Process

make wood/aluminium/stainless steel frame to get back lighting

bottom led lighting to get bottom to top lighting transparent

back lighting feature wall

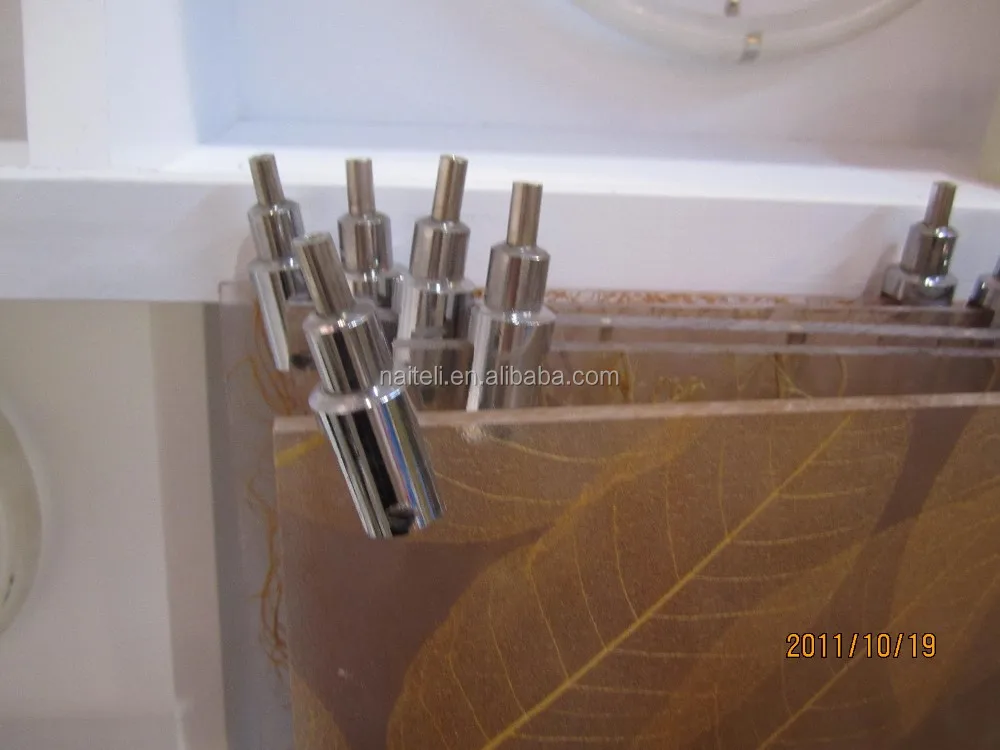

ceiling hardware for  hanging partition,wall

hardware for divider and partition

hanging ceiling lighting

BEND
Oven Bending---evenly heating by Oven,take the panel out of Oven and put it on the prepared moulds,press and mould you want,then cooling the bending panel
CUT
Wood saw,ceramic saw,marble cutting machine are all applicable for cutting,and portable manual driller for drilling
LIGHT
Better use fluorescent lamp or neon light or LED,>15cm away from the resin panel.if between 10~15cm,better use a refecting paper on the lamp back panel.
DAMAGE PREVENTION
Avoid prolonged exposure to strong chemicals such as acids, bases and solvents.
REPAIRING
any dirts on the surface,use soap water or ammonia detergent to clean then dry cloth to clean the surface.
Small cuts, scratches and stains grind it by using sand paper,first 800#(with water),second 1000#(with water),then use wax(usually car wax is ok.) to polish it.
Deeper cuts or damage due to shocks,such as cracks,may require the intervention
of a service centre, in order to perform a craftsman like repair.

Packing&Delivery
Packaging
Size
250 (L) * 130 (W) * 40 (D)
Weight
1.25 T
Packaging Details

clean all translucent stone panel.clear PE film project polish/matte surface finish.30pcs 1220*2440*8mm standard size panel in one wooden box/pallet.The normal package is wooden box(Size: L*W*H).the wooden box will be fumigated.or pack it according to customers special request.

Size
40 (L) * 40 (W) * 30 (D)
Weight
15kgs
Packing Details

single packed into plastic bag and strong,neutral,brown cardboard box,box padded on all sides with styrofoam plates(2~3cm thick)

then 5~10pcs inner carton to one master carton.or pack it according to customers special request.

Packaging
Size
250 (L) * 130 (W) * 50 (D)
Weight
1.5T
Packaging Details
50pcs 1220*2440*6mm standard size panel in one wooden box/pallet.metal strap 20ft container can load 8~10pcs wooden box/pallet.all box/pallet placed orderly and easy for your uploading on arrivial.

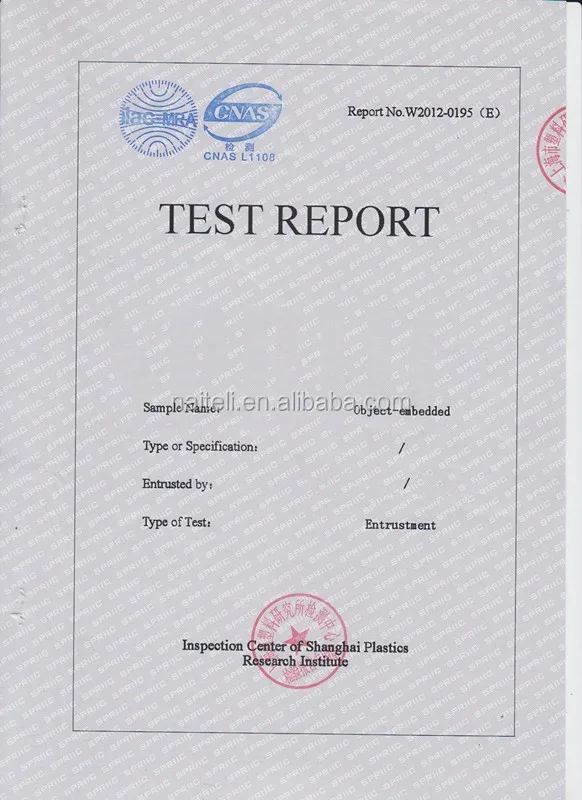

certifications
Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to fabricate column,cube,box
* support in technology and installation
* Engineers available to service overseas.
