Designer Choice Backlit Onyx Marble Stone, Interior Decoration Material

FOB Reference Price:Get Latest Price
$20.00 - $200.00 / Square Meters | 3 Square Meter/Square Meters Decoration Material small sample is possible (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
naiteli
Model Number:
NT-S02
Size:
1220*2440mm
Thickness:
6mm
type:
decoration building material
Bending Strength:
42.2MPA
Compressive Strength:
82.4MPA
Shape:
custom
Usage:
walls,lamp,lighting,partition,table top
Feature:
New Onyx Marble Product
Characteristic:
low flammability
application:
room divider,Sandwich Wall Panel
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Month for Decoration Material
Packaging & Delivery
Packaging Details
1,30 PCS to one wooden case.
2,plastic film protect the acrylic panel surface.
3,sheet cover the surface &foam surround &wooden case,,foam with fumigation wood pallets
Port
Zhongshan
Lead Time :
Shipped in 7 days after payment
Product Description

Product Application

with excellent impact resistance, fabrication property and eco-friendly,recyclable.

NAITELI Translucent alabaster stone,backlit onyx stone, Eco Resin Panel,Acrylic Panel,which are used for

column,pillar,box,cube,case

bathroom wall,shower wall,wall cladding,wall covering

border tile,nightstand,display stand,serving tray,signage

ceiling project, lighting and lamp shade,showcase,showbox

feature wall,sliding door,partition and divider,furniture set

reception desk,bar counter,bar table,ktv table,coffee table,dining table

for interior and exterior decoration in high end hotel room and lobby,night club,karaok,ktv

coffee shop,fast food store,shopping mall,restaurant,airport,train station,casino,museum,mosque

SPECIFICATIONS FOR TRANSLUCENT STONE

Mechanical Behavior
Barcol Hardness
... ...
50
Bending Srength
MPA
42.2
Impact Tenacity
KJ/M^2
4.2
Thermal Property&flammability
Fire Resistant
CLASS
B
Heat Resistant
°C
100
Water Absorptivity
%
0.001
Radiation&Optical Property
Interior lighting index≤1.0
RA
0.006
External lighting index≤1.3
R
0.003
Translucent
%
89

Main Features

1) high impact resistance,light transmission
2) weather&water resistant, fire retarding
3) achieved the simulation effect of natural stone
4) superior stain&bacteria&chemical resistance
5) spray painting, screen printing and vacuum coating can be applied to the surface

Project

Ceiling

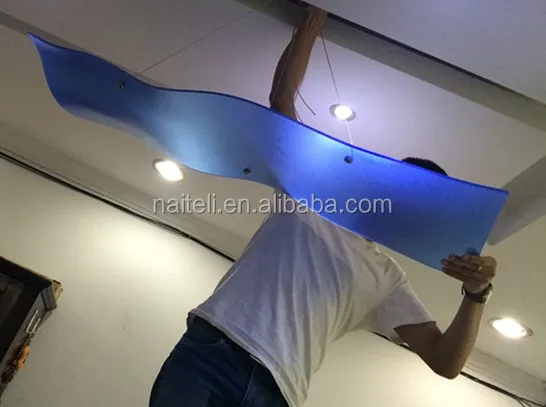

Name: translucent stone bending ceiling lighting
Model: NAITELI NT-5809 white brown vein
Des.: R1450 bending alabaster stone panel in full sheet size.put led lighting in the back side.each flooring install 6pcs bending alabaster panel

Lamp Shade

Name: yellow alabaster stone
Model: yellow color coffee vein
Des.:with four sided show cube/box in 400*400*900mm size,put led lighting in bottom with stainless steel frame to fix

Feature Wall

Name: Backlit Onyx Wall Cladding
Model: yellow onyx NT-710
Des.: 8mm thickness,high polishing finish,cut 400*400mm size,use UV-connector to install the feature wall.

Backlit Wall Cladding

Name: Translucent Artificial Stone
Model: colorfull stone in show room
Des.: 300*500*50mm five sided show box with led lighting frame to get back lighting looking

Installation Process

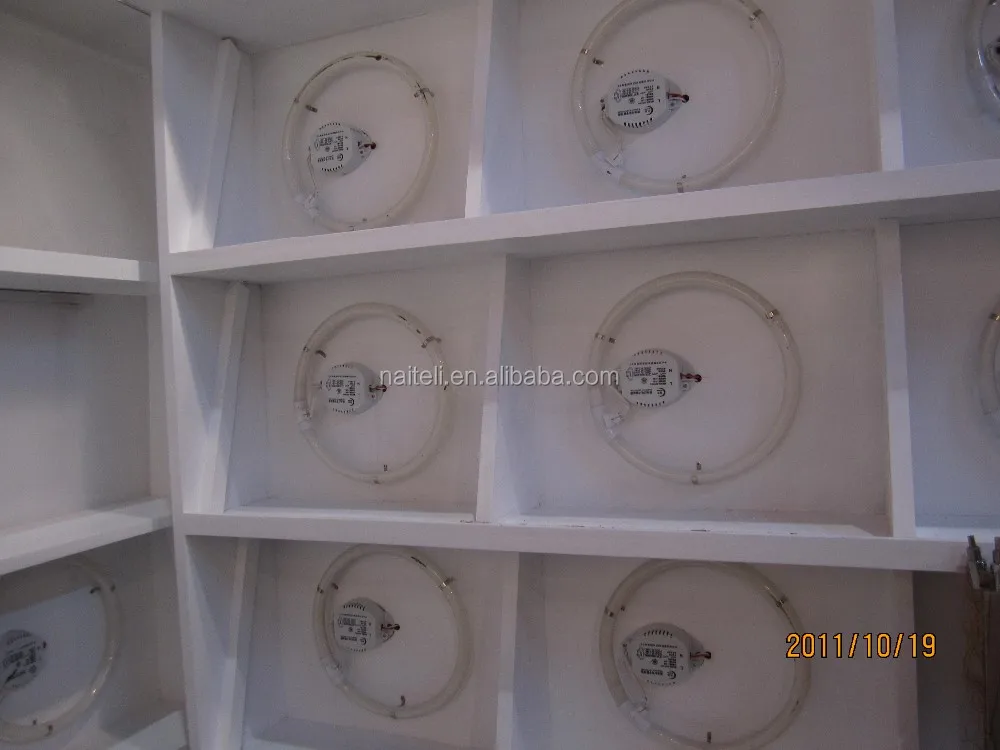

make wood/aluminium/stainless steel frame to get back lighting

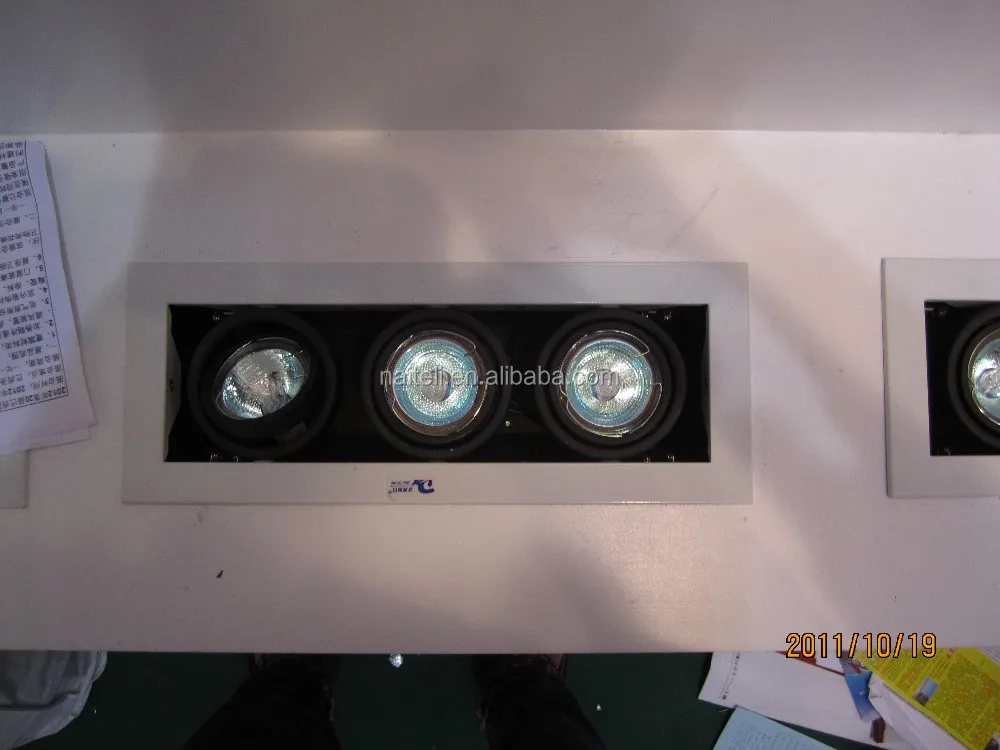

bottom led lighting to get bottom to top lighting transparent

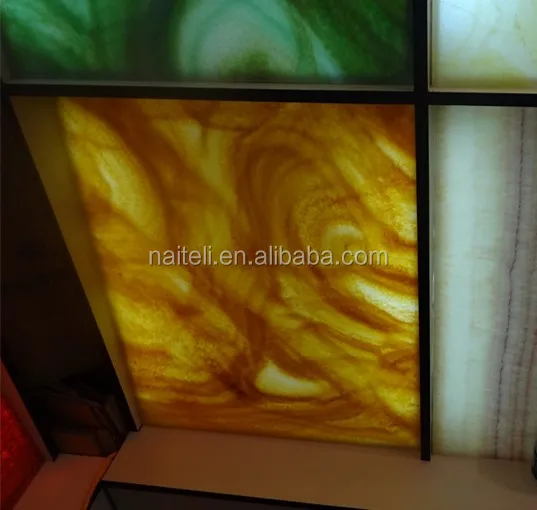

back lighting feature wall

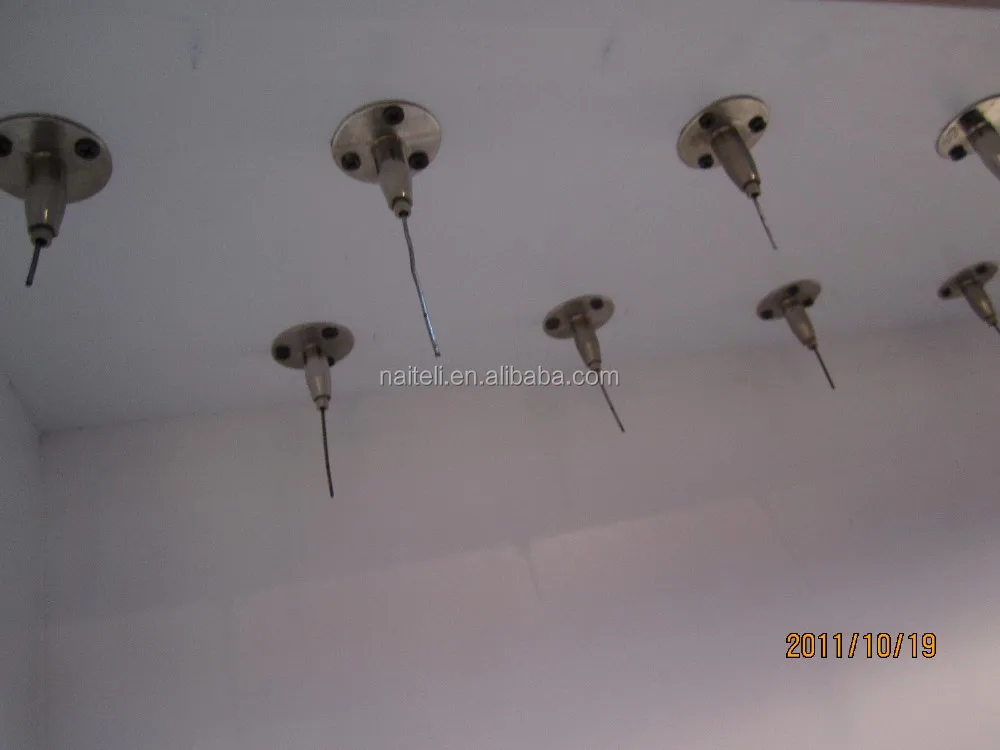

ceiling hardware for  hanging partition,wall

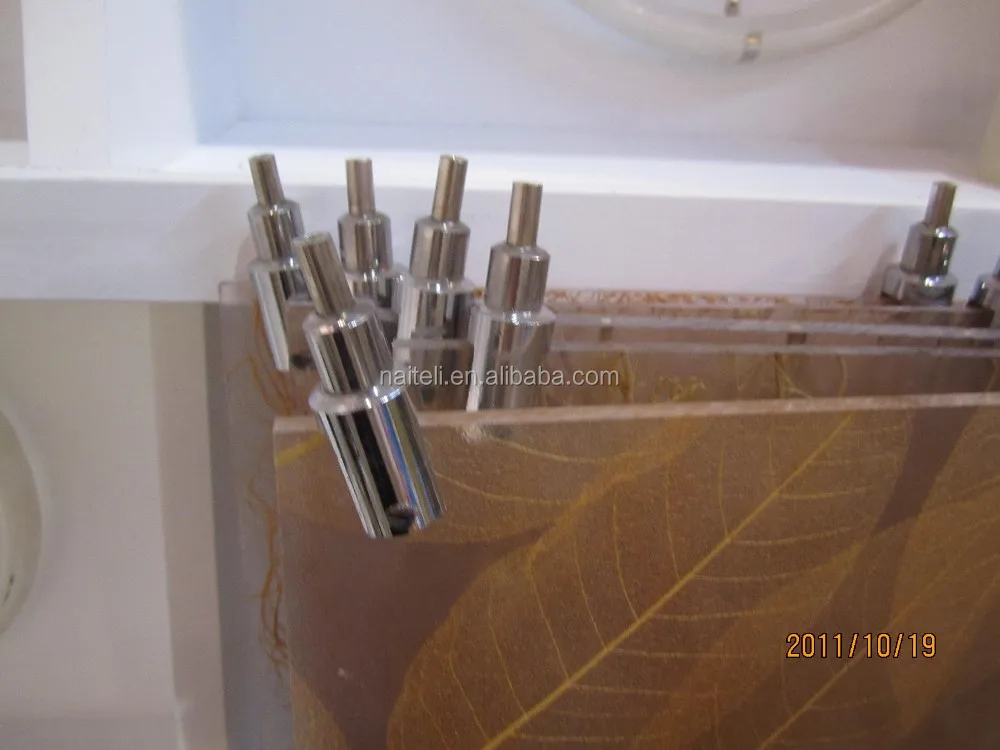

hardware for divider and partition

hanging ceiling lighting

BEND
Oven Bending---evenly heating by Oven,take the panel out of Oven and put it on the prepared moulds,press and mould you want,then cooling the bending panel
CUT
Wood saw,ceramic saw,marble cutting machine are all applicable for cutting,and portable manual driller for drilling
LIGHT
Better use fluorescent lamp or neon light or LED,>15cm away from the resin panel.if between 10~15cm,better use a refecting paper on the lamp back panel.
DAMAGE PREVENTION
Avoid prolonged exposure to strong chemicals such as acids, bases and solvents.
REPAIRING
any dirts on the surface,use soap water or ammonia detergent to clean then dry cloth to clean the surface.
Small cuts, scratches and stains grind it by using sand paper,first 800#(with water),second 1000#(with water),then use wax(usually car wax is ok.) to polish it.
Deeper cuts or damage due to shocks,such as cracks,may require the intervention
of a service centre, in order to perform a craftsman like repair.

Packing&Delivery
Packaging
Size
250 (L) * 130 (W) * 40 (D)
Weight
1.25 T
Packaging Details

clean all translucent stone panel.clear PE film project polish/matte surface finish.30pcs 1220*2440*8mm standard size panel in one wooden box/pallet.The normal package is wooden box(Size: L*W*H).the wooden box will be fumigated.or pack it according to customers special request.

Size
40 (L) * 40 (W) * 30 (D)
Weight
15kgs
Packing Details

single packed into plastic bag and strong,neutral,brown cardboard box,box padded on all sides with styrofoam plates(2~3cm thick)

then 5~10pcs inner carton to one master carton.or pack it according to customers special request.

Packaging
Size
250 (L) * 130 (W) * 50 (D)
Weight
1.5T
Packaging Details





50pcs 1220*2440*6mm standard size panel in one wooden box/pallet.metal strap 20ft container can load 8~10pcs wooden box/pallet.all box/pallet placed orderly and easy for your uploading on arrivial.
FAQ


Q1.What is the feature of your panel?
•fire resistant B class
•net weight is half of natural marble.weather and water resistant
•eco-friendly to get touch with food,fruit.get USA FDA certificate
•our panel has over 89% lighting transparent.availabel to curve/bending,drill,sculpture,paint,gule shape

Q2.May I customize products?
of course.Naiteli has research and development deparment to help you get your idea coming ture
we have OEM experience for over 10 years.

Q3.How much will the shipping cost?
we can arrange worldwide shipping.
we are committed to find best sevice and low cost shipping for you.the shipping charges are calculated
based on the ordered products.

Q4.If I want small trial order?
•small trial order is welcome.we can arrange free samples to you along with your orders.
•if you want to get free sample in priorit of trial order.it is still possible.but you would pay sample fee firstly
and sample fee will be returned when official order is placed.

Q5.How long can I get price?
we respond to every inquiry within 24 hours.so pls fell free to contact with us
